alright any body no the dimensions of the 2.2l engine
any year model will do
length width and height
How about these. They say 2.0L, but the 2.2L hase the same dimensions, except for the crank stroke.

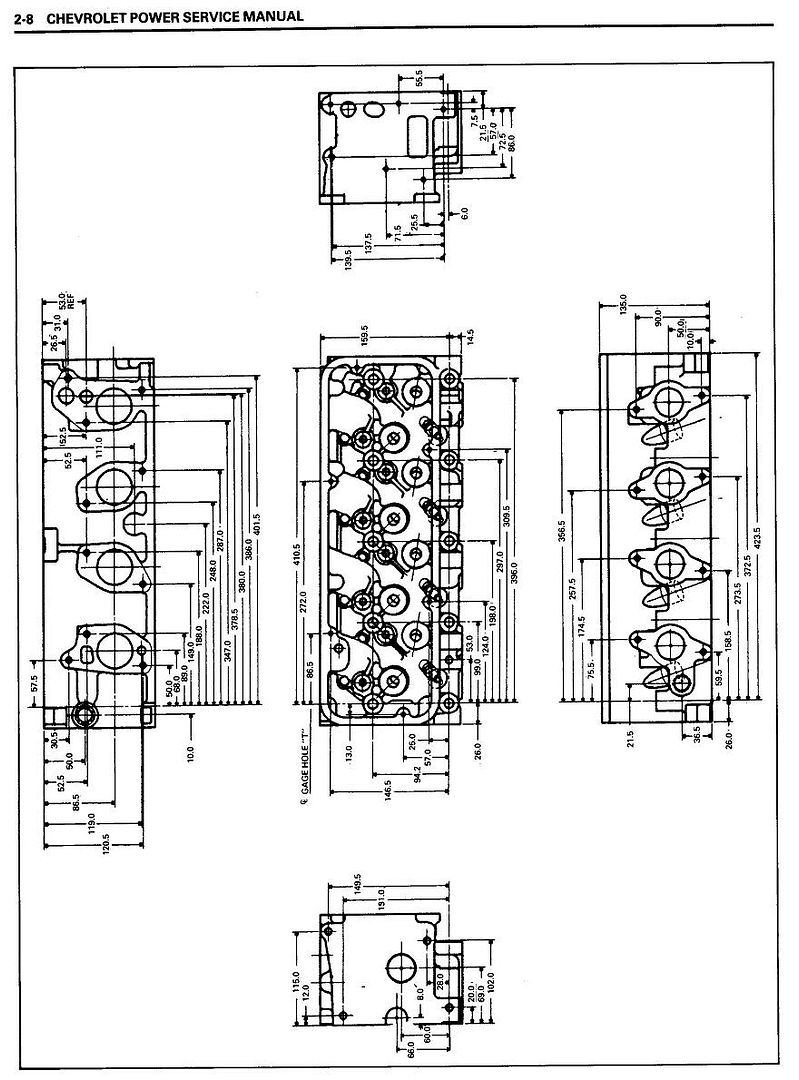

Cylinder Head
**Note: head dimensions changed in '98.

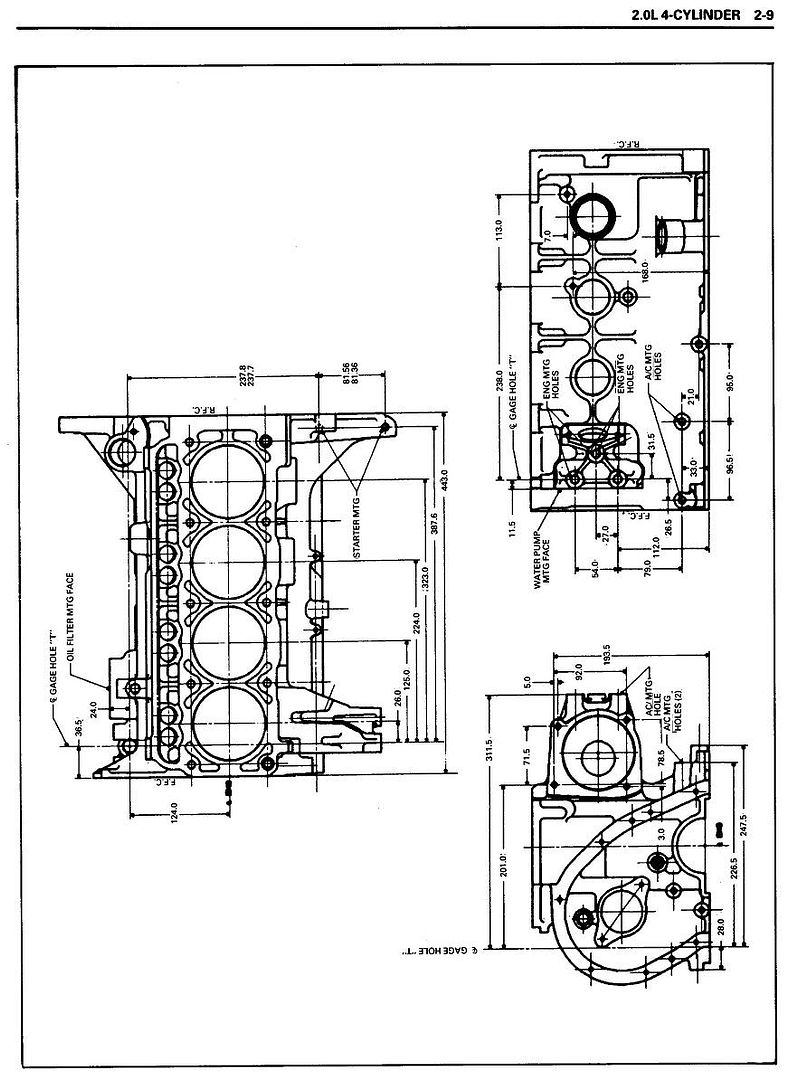

Engine Block
All measurements in Millimeters
Copywright 1988, Chevrolet Power Catalog, 6th Edition.
There is more info posted in
New York J-Bodies Library.
Also from the Chevy Power Catalog,
Quote:
"Total weight for a complete, ready-to-run production engine for an automatic transmission is 323 pounds (358 pounds with a manual transmission flywheel.)"
Remember this was for an '88 motor, which had the 3.15" stroke crankshaft and Throttle Body Injection.
Jack needs to change his name to "Mad Jack (The all-knowing OHV Jedi Master)".
